Canvas拖尾效果的实现

背景

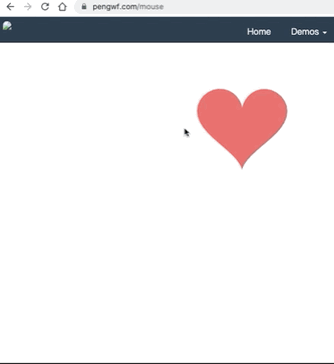

经常看到canvas的一些拖尾效果(如彗星，烟花等),看了下别人的demo发现原来实现很简单.

在我的想象中，实现这种效果是一定需要一个数组的，用来储存彗星的尾巴的位置，透明度，生命时长等信息。然后遍历这个数组，将这个尾巴画在canvas上。然而，万万没想到，真正的实现却简单的不像实力派，不需要数组.这里的技巧在于，在重绘制下一帧前，不是调用clearRect清除掉上一帧的内容，而是在上一帧基础上加上一个半透明蒙层，然后继续画下一帧。画的帧数多了，也就有了拖尾效果，拖尾效果的长短，跟蒙层的透明度有关，透明度越小，拖尾越长。

项目实战

修改前伪代码:

init() {
  this.canvas = document.getElementById('canvas');
  this.ctx = this.canvas.getContext('2d');
  this.width = parseInt(document.defaultView.getComputedStyle(this.canvas, null).width, 10);
  this.height = parseInt(document.defaultView.getComputedStyle(this.canvas, null).height, 10);
  this.canvas.width = this.width;
  this.canvas.height = this.height;
  this.center = [this.width / 2, this.height / 2];
  this.radius = 5;
  this.factor = 12;
  this.piece = this.radius * this.factor;
  this.angle = 1 / this.piece * Math.PI * 2;
  this.propress = 0;
  Utils.captureMouse(this.canvas, (mouse) => {
    const dx = mouse.x - this.center[0];
    const dy = mouse.y - this.center[1];
    this.rotate = Math.atan2(dy, dx) - Math.PI / 2;
    const speedX = Math.cos(this.rotate + Math.PI / 2) * this.radius;
    const speedY = Math.sin(this.rotate + Math.PI / 2) * this.radius;
    if (this.center[0] + speedX > 0 && this.center[0] + speedX < this.width) {
      this.center[0] = this.center[0] + speedX;
    }
    if (this.center[1] + speedY > 0 && this.center[1] + speedY < this.height) {
      this.center[1] = this.center[1] + speedY;
    }
  });
  this.draw();
}

draw() {
  this.ctx.clearRect(0, 0, this.width, this.height);
  this.heart();
  this.animation = window.requestAnimationFrame(() => {
    this.draw();
  });
}

heart() {
  this.ctx.save();
  this.ctx.beginPath();
  this.ctx.translate(this.center[0], this.center[1]);
  this.ctx.rotate(this.rotate);
  this.propress += 0.1;
  this.ctx.scale(1 + Math.sin(this.propress) * 0.2, 1 + Math.sin(this.propress) * 0.2);
  for (let t = 0; t < 120; t += 1) {
    const i = this.angle * t;
    const x = this.radius * 16 * (Math.sin(i) ** 3);
    const y = -this.radius * (13 * Math.cos(i) - 5 * Math.cos(2 * i)
      - 2 * Math.cos(3 * i) - Math.cos(4 * i));
    this.ctx.lineTo(x, y);
  }
  this.ctx.fillStyle = `rgba(255, 0, 0, ${Math.sin(this.propress) * 0.5 + 0.5})`;
  this.ctx.fill();
  this.ctx.restore();
}

修改后的伪代码:

init() {
  this.canvas = document.getElementById('canvas');
  this.ctx = this.canvas.getContext('2d');
  this.width = parseInt(document.defaultView.getComputedStyle(this.canvas, null).width, 10);
  this.height = parseInt(document.defaultView.getComputedStyle(this.canvas, null).height, 10);
  this.canvas.width = this.width;
  this.canvas.height = this.height;
  this.center = [this.width / 2, this.height / 2];
  this.center1 = [this.width / 2, this.height / 2];
  this.radius = 5;
  this.factor = 12;
  this.piece = this.radius * this.factor;
  this.angle = 1 / this.piece * Math.PI * 2;
  this.propress = 0;
  Utils.captureMouse(this.canvas, (mouse) => {
    const dx = mouse.x - this.center[0];
    const dy = mouse.y - this.center[1];
    this.rotate = Math.atan2(dy, dx) - Math.PI / 2;
    this.center1 = [mouse.x, mouse.y];
    const speedX = Math.cos(this.rotate + Math.PI / 2) * this.radius;
    const speedY = Math.sin(this.rotate + Math.PI / 2) * this.radius;
    if (this.center[0] + speedX > 0 && this.center[0] + speedX < this.width) {
      this.center[0] = this.center[0] + speedX;
    }
    if (this.center[1] + speedY > 0 && this.center[1] + speedY < this.height) {
      this.center[1] = this.center[1] + speedY;
    }
  });
  this.draw();
}

draw() {
  // 就是修改了这几行,注释掉清除上一次的内容,加一个蒙版,然后拖尾效果就出来了
  // this.ctx.clearRect(0, 0, this.width, this.height);
  this.heart();
  this.ctx.fillStyle = 'rgba(255,255,255,0.1)';
  this.ctx.rect(0, 0, this.width, this.height);
  this.ctx.fill();
  this.animation = window.requestAnimationFrame(() => {
    this.draw();
  });
}

heart() {
  this.ctx.save();
  this.ctx.beginPath();
  this.ctx.translate(this.center1[0], this.center1[1]);
  this.ctx.rotate(this.rotate);
  this.propress += 0.1;
  this.ctx.scale(1 + Math.sin(this.propress) * 0.2, 1 + Math.sin(this.propress) * 0.2);
  for (let t = 0; t < 120; t += 1) {
    const i = this.angle * t;
    const x = this.radius * 16 * (Math.sin(i) ** 3);
    const y = -this.radius * (13 * Math.cos(i) - 5 * Math.cos(2 * i)
      - 2 * Math.cos(3 * i) - Math.cos(4 * i));
    this.ctx.lineTo(x, y);
  }
  this.ctx.fillStyle = '#f00';
  this.ctx.fill();
  this.ctx.restore();
}
